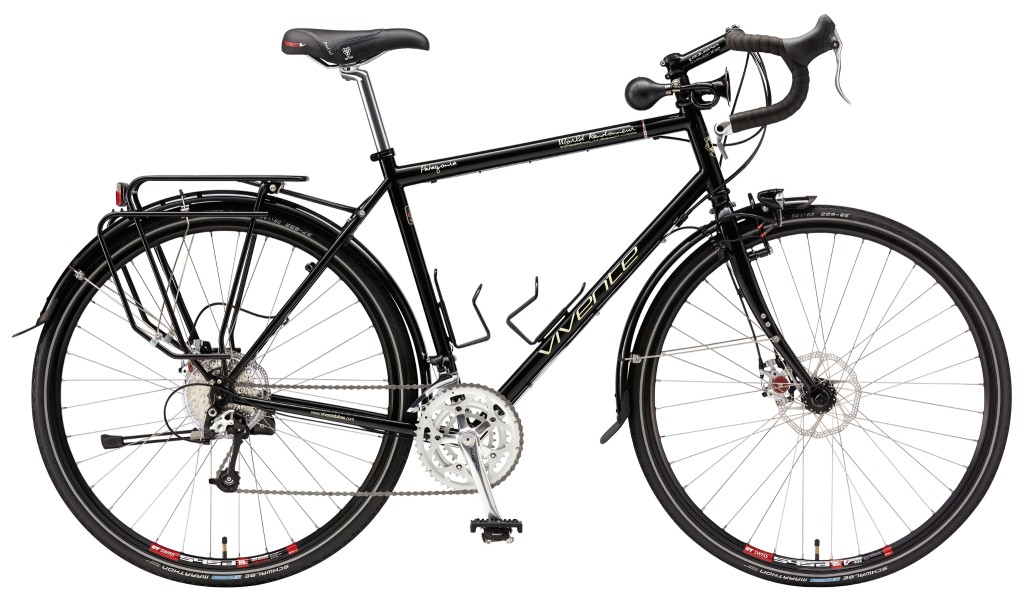

Patagonia

Year of Release:

January 2014

Specifications

Frame Set

Frame
Cr-Mo tubing, double butted main tubes, 3 bidon mounts, spare spoke mounts, kickstand mount, disc and rear rack mount, Rohloff or derailleur compatible, 700x28-45C (XS is 26" - 559mm).
Front Fork
1-1/8", A-Head system, 100% cr-mo steel, threadless, rack mounts to suit Tubus Duo, pivots, disc brake, mudguard and light cable mounts. Extended (cutable) steerer.
Headset
Tange fully sealed cartridge headset.
Seatpost
Kalloy 27.2 micro adjustable alloy. 300mm.
Attachments
Full set of metric 5mm stainless steel allen head screws with washers. Rear electric wiring.



Brakes

Calipers
Avid BB7 mechanical disc with sintered pads.
Rotors
Avid 160mm 6-bolt attachment
Levers
TRP RL-340, alloy drop bar levers, silver. (On XS/S TRP RL-320 junior levers).

Transmission

Levers
Shimano bar-end SL-BS77, Dura-Ace, 9sp
Front Derailleur
Shimano Sora, band type for triple chainwheel.
Rear Derailleur
Shimano XT, SGS 9sp, direct attachment.
Bottom Bracket Set
Shimano UN-55 square taper -118mm.
Crank Set
Sugino Alpina 600T 48/36/24T, 165/170/175 mm cranks.
Casette
Shimano Deore 9sp, NI plated, 11-12-14-16-18-21-24-28-32T.
Chain
Shimano CN-HG73A 105/Deore LX, narrow for 9sp.

Wheels

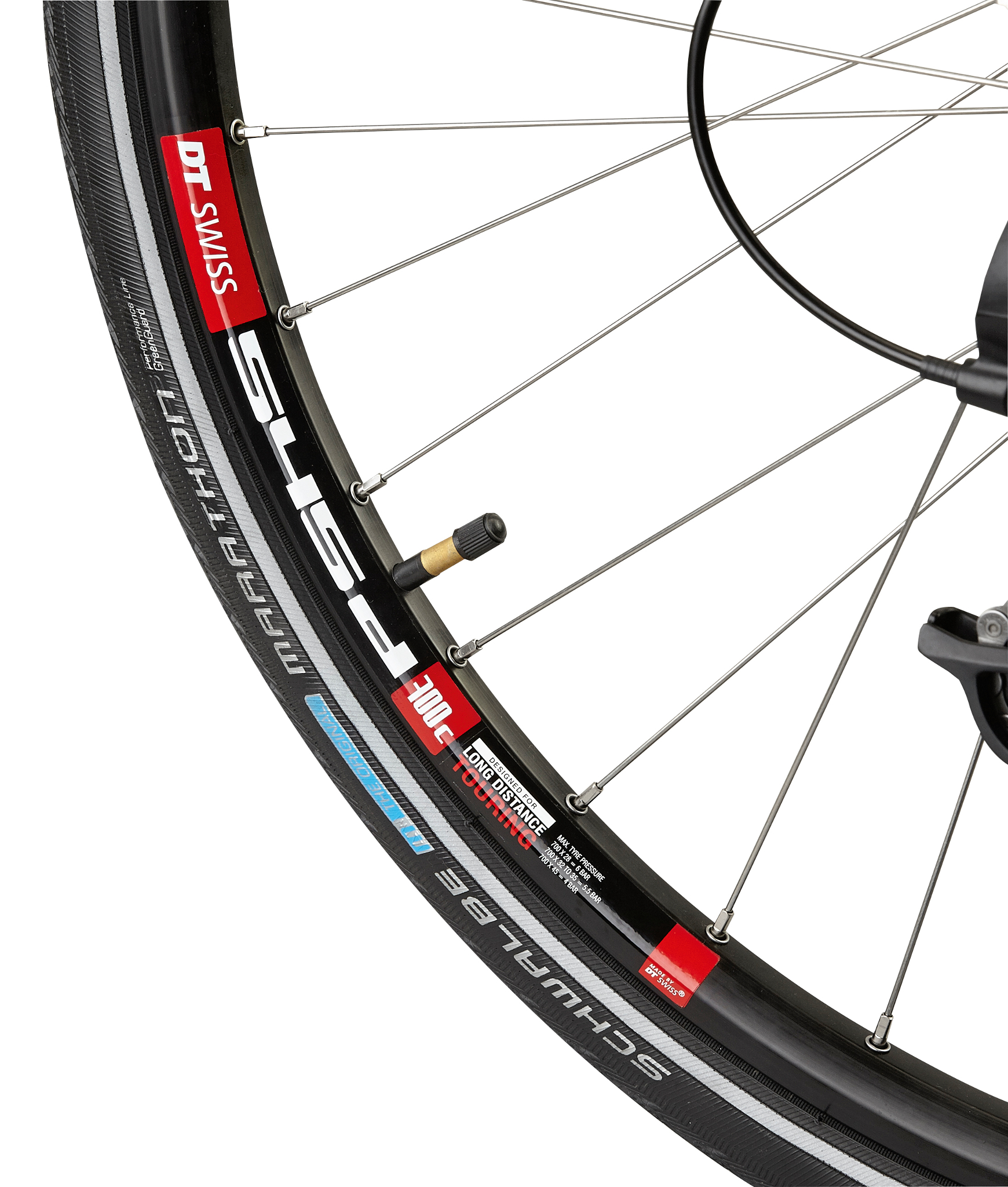

Rims
DT-545d, disc specific, for long distance touring, pressure advice decal specific for tyre width, 36H, 21mm internal width, 700c (622) or 26" (559), blk, with eyelets.
Tyres - Tubes
Schwalbe Marathon, 700c (622) or 26" (559), rear 35, front 32.
Front Hub
Shutter Precision (SP) 8, black , (6-bolt type), 6V-2.4W,  36h
Rear Hub
XT, 8/9 sp, black, (6-bolt type), 36h, OLD:135mm
Spokes
DT, 36+36, stainless steel, x3, rear Alpine III (2.34/1.8/2.0), front Champion (2.0)

Contact

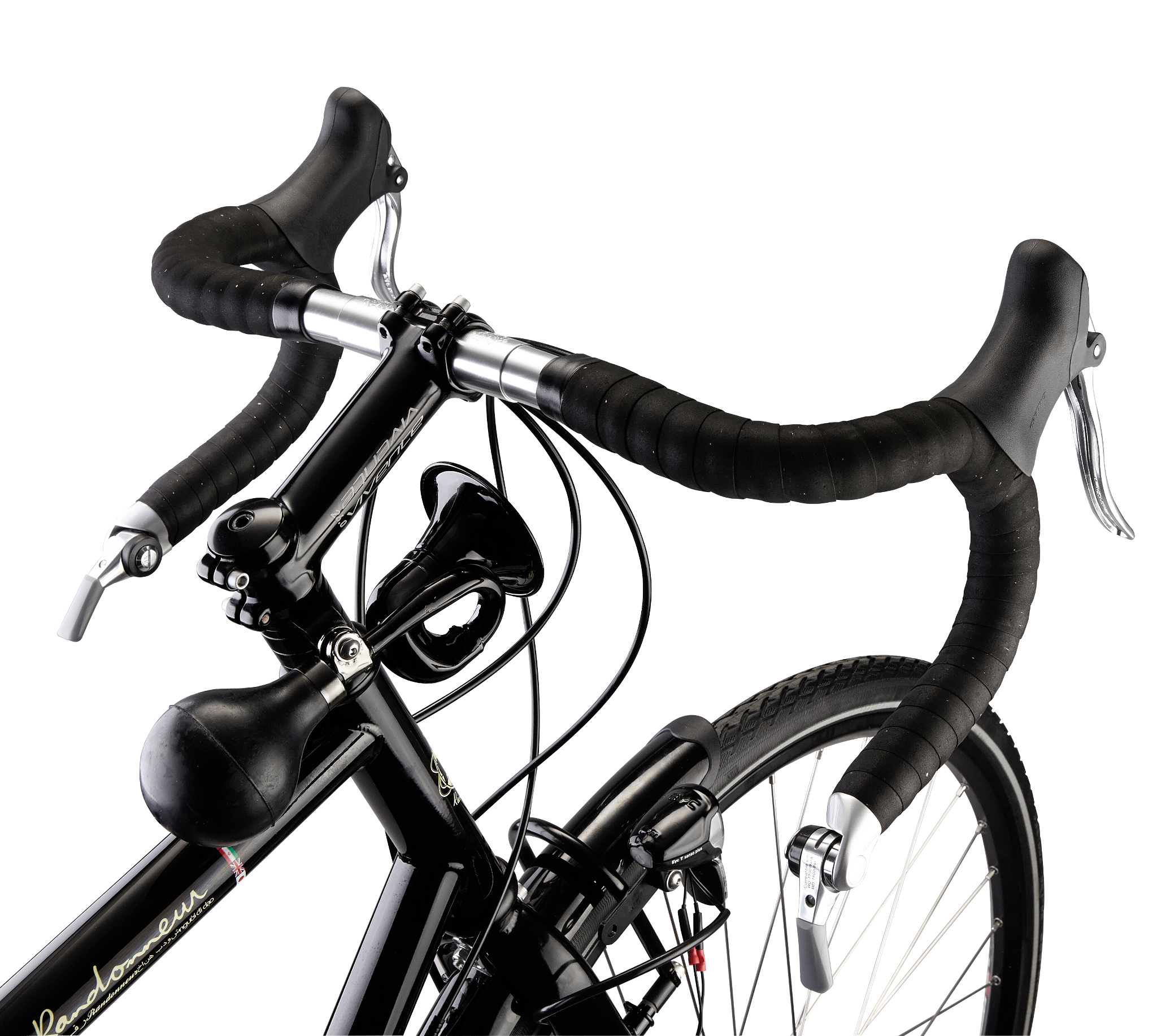

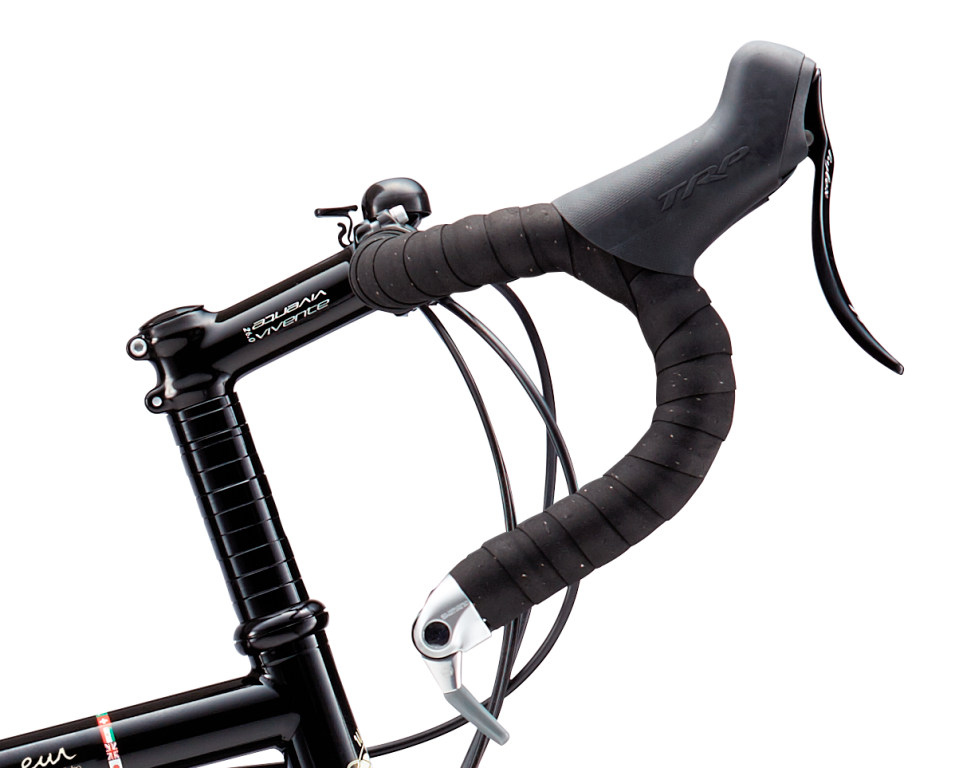

Handlebars
Nitto Noodle, silver, 26.0, 420(M), 440(L), 460(XL,XXL) drop 140, reach 95.

Uno, silver, 26.0, 380(XS,S) drop 120, reach 75.

Stem
Vivente 7 degree, 60mm(XS)/80mm(S)/100mm(M)/120mm(L,XL)/130mm(XXL), 26.0, stack 40mm.
Grip
Velo Eva cork tape with gel.
Saddle
WTB Speed V Progel (M,L,XL,XXL) 143x265 wide & Speed She (XS,S) 142x240 wide.
Pedals
Shimano double sided clipless M505 w/removable platform and reflectors

Lights

Headlight
Busch & Muller Lumotec EYC w/standlight and sensor.
Tail light
Busch & Muller Toplight line plus for day night running.



Racks

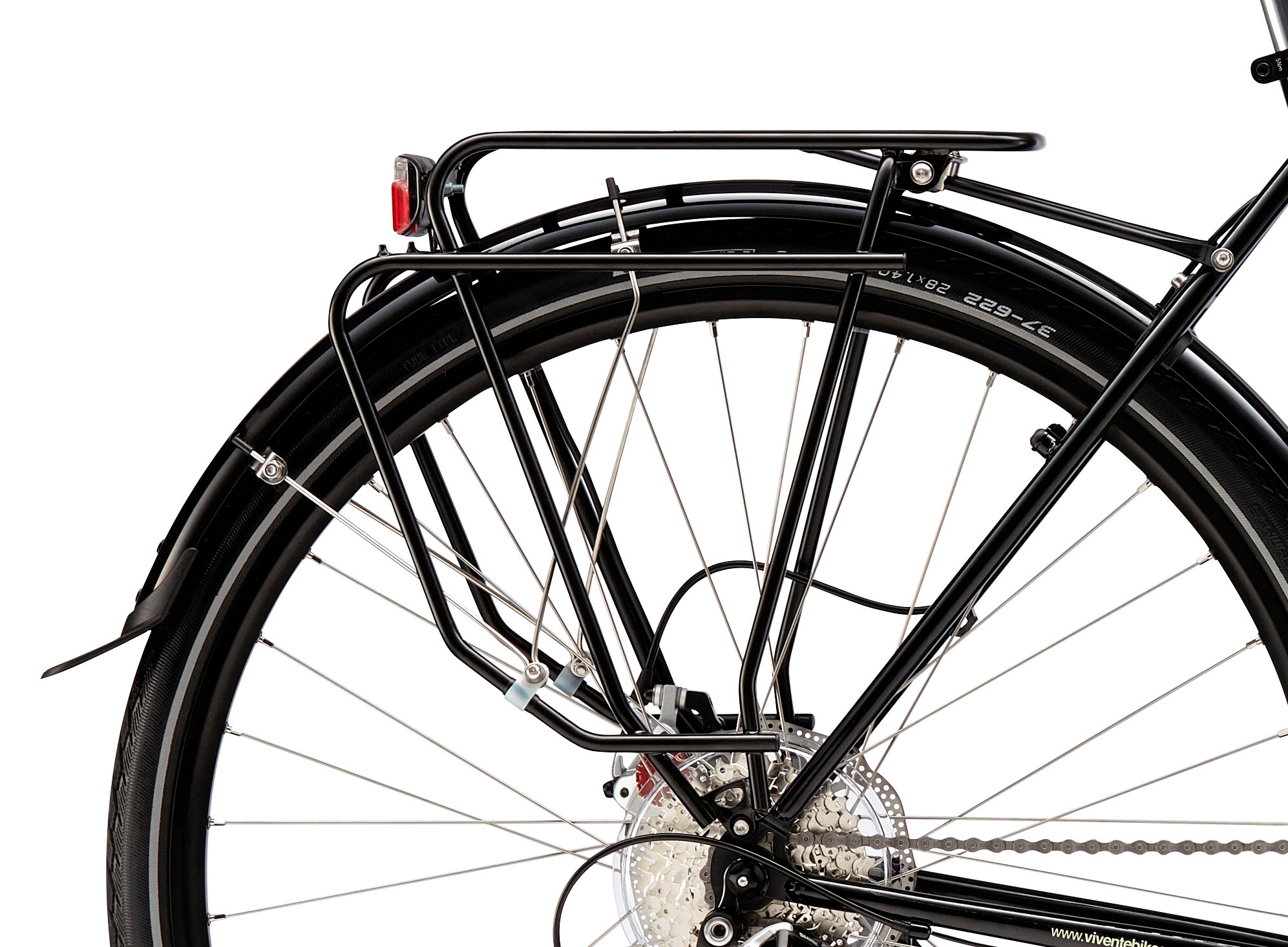

Rear
Tubus Logo, cr-mo steel, black.



Other

Bidon Cages
2 pce black alloy 6mm.
Mudguards
Vivente, black, with stainless steel adjustable mounts.
Horn
150mm black bugle mounted to custom headset spacer.
Kick Stand
Atranvelo Stylo-DV, black.

Spares

Spare Spokes
4 spokes, one for each of front and rear, left and right.
Vivente Flags
