SHB

Year of Release:

January 2015

Specifications

Frame Set

Frame
Double butted chromoly touring frame, BSA shell, sizes XS (26"),S,M,L,XL,XXL,XXXL (700c)
Front Fork
1-1/8" full chromoly, butted, threadless, disc brake reinforced, lowrider & electric cable mounts
Headset & Spacers
Tange RDC-82, 1-1/8", Duralumnium, black, stack 26.2, fully sealed cartridge, 81gms; 10mmx9 + 5mmx1 + 3mmx1
Seatpost & Clamp
Kalloy SP-342 micro adjust 27.2 X 300mm silver, Kalloy, SC-200 black
Mounting Hardware
All stainless 5mm and 6mm metric with stainless flat and spring washers.

Brakes

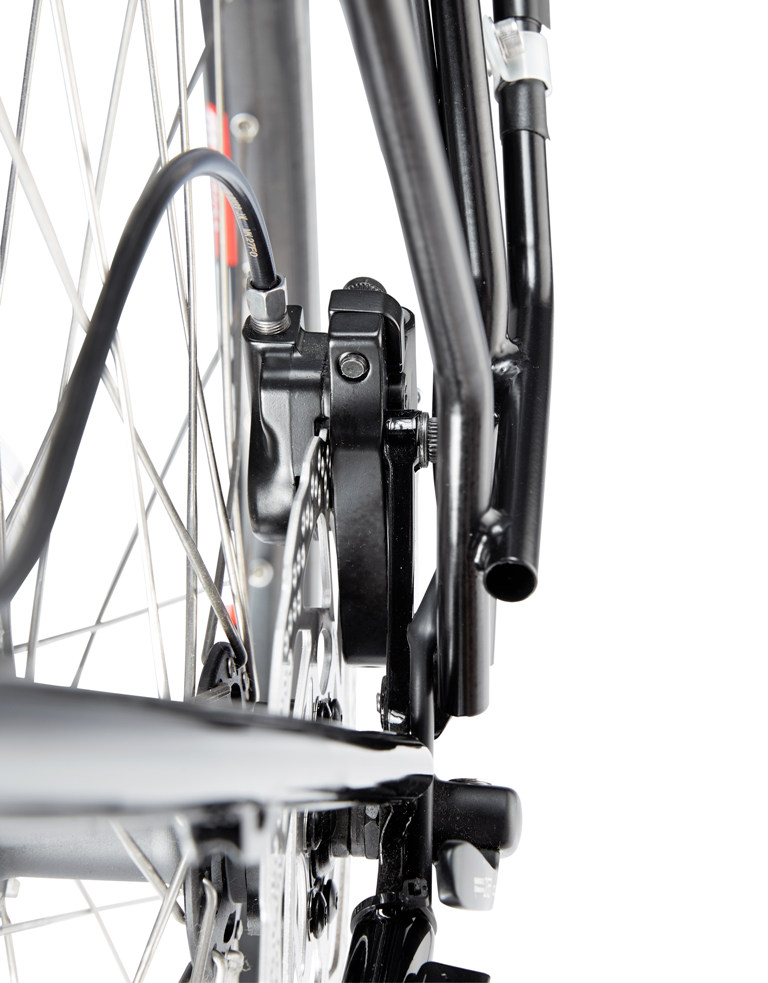

Calipers
Shimano BR-M395 (hydraulic disc)
Rotors
Shimano SM-RT56 6 bolt, 160mm
Levers
Shimanbo BL-M396 2 finger hydraulic

Transmission

Shift Levers
Shimano SL-M590 black, 9-speed trigger

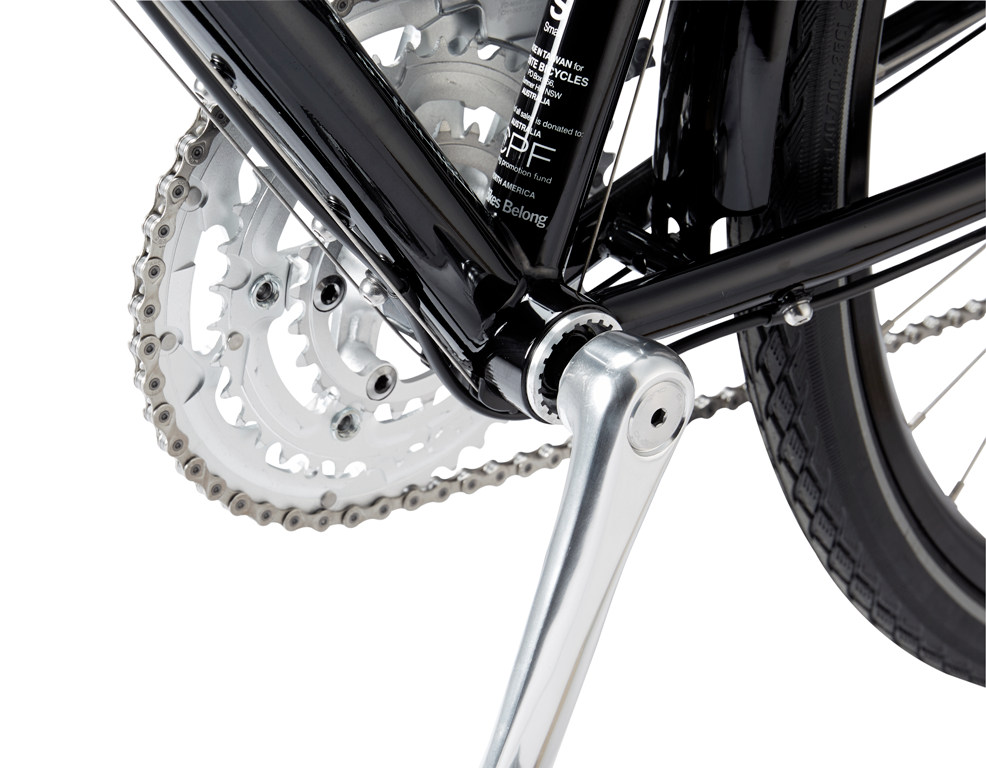

Chainwheel and Cranks
Sugino triple CW&C, 46/36/24, 165/170/175MM, 110/74MM PCD, suit 9speed
BB Set
Shimano BB-UN55 118 English square taper
Chain
KMC X9, 1/2"*11/128" np/np 110/114/116L
Casette
Shimano Deore CS-HG50-9 9-speed Ni-plated 11-12-14-16-18-21-24-28-32T
Front Derailleur
Shimano FD-M591 silver , down swing, for 44/48T
Rear Derailleur
Shimano XT, RD-M771-SGS 9-speed
Rear Hub
Shimano Deore XT freehub, FH-M756A L 36H 8/9/10-speed, for disc brake (6 bolt), black

Wheels

Rims
DT 545d, ETRTO 559 X 21 (XS) & 622 X 21, ERD 542 & 605, 36H, black, 530 & 585gms, w/eylet, for disc, SV
Rear Tyre
Schwalbe Marathon 35-559 (26x1.35) (XS)/ 37-622 (28x1.40, 700x35c)
Front Tyre
Schwalbe Marathon 35-559 (26x1.35) (XS) / 32-622 (28x1.25, 700x32c)
Tubes
26 X 1.25/1.5. , 0.9MM, SV 48mm / 700 X 35C, 0.9MM, SV 48mm
Front Hub & Skewer
Dynamo hub, SP-PD-8, black , (6-bolt), 6V 3W, 36H, OLD:100Mmm, Formula QR23 (internal type)
Front Spokes
DT Champion 36H, silver, cross three pattern, 14G (2.0MM)
Rear Spokes
DT Alpine III triple butted, 36, silver, cross three pattern, 13/15/14G (2.34/1.8/2.0MM)

Contact

Handlebars
UNO AL020, riser bar, 580/600/620/640, rise 15/25mm, 9 degree, black, bore 31.8mm
Grips & Ends
Ergon GP3 grip & barend, (XS,S,M)S, (L,XL,XXL)L
Stem
VWR, bore 31.8MM, steerer 28.6MM, 3D forged, 7degree, 60(XS)/80(S)/100(M)/120(L,XL)/130(XXL)MM, black.
Saddle
VWR custom, black, w/cutout 270X168mm
Pedals
Shimano, PD-A530 SPD, single sided clipless, w/cleats

Lights

Front Light
Axa Luxx Plus auto, 70 lux, w/light & movement sensor for steady function, w/steady light, w/USB outlet
Rear light
Axa Riff, steady, led with light guide, 4 minute charge when stopped

Racks

Rear Carrier
Tubus Logo Evo, 150mm lower spacing, 50mm taillight spacing

Other

Fenders (F & R)
VWR 46mm wide, w/stainless steel hardware, 26" or 700c to suit
Kick Stand
Atranvelo, Stylo DV w/regular (XS) and long(700c) wire or leg
Bell & Horn
Nuvo alloy top, adjustable bell (fitted) + VWR black 6" bugle horn (included)
Cages & Bottles
2 pce per bike - 6mm black alloy cages & VWR custom LD PE 700cc bidons
